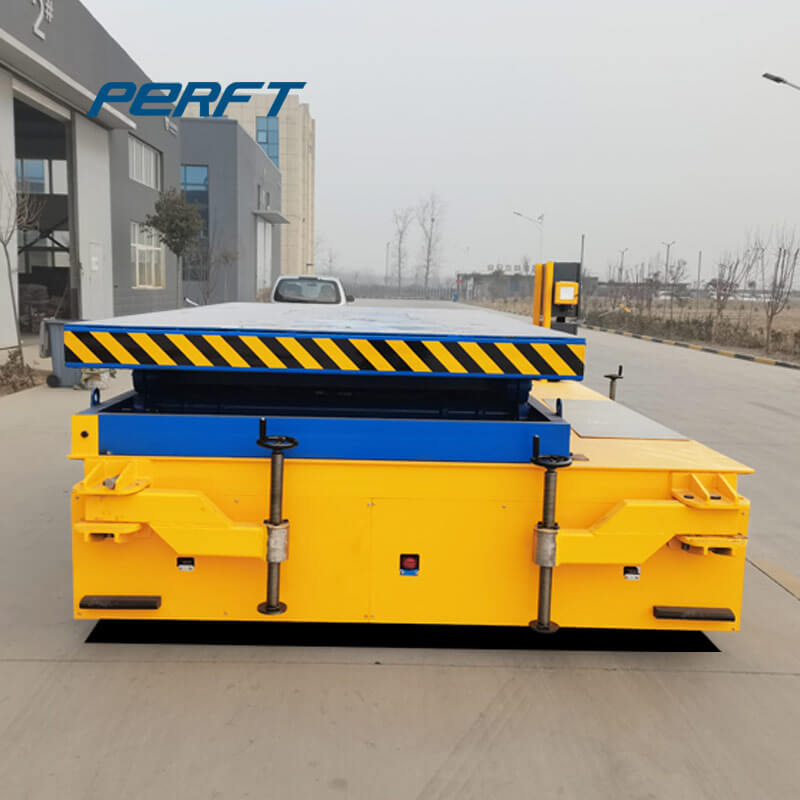

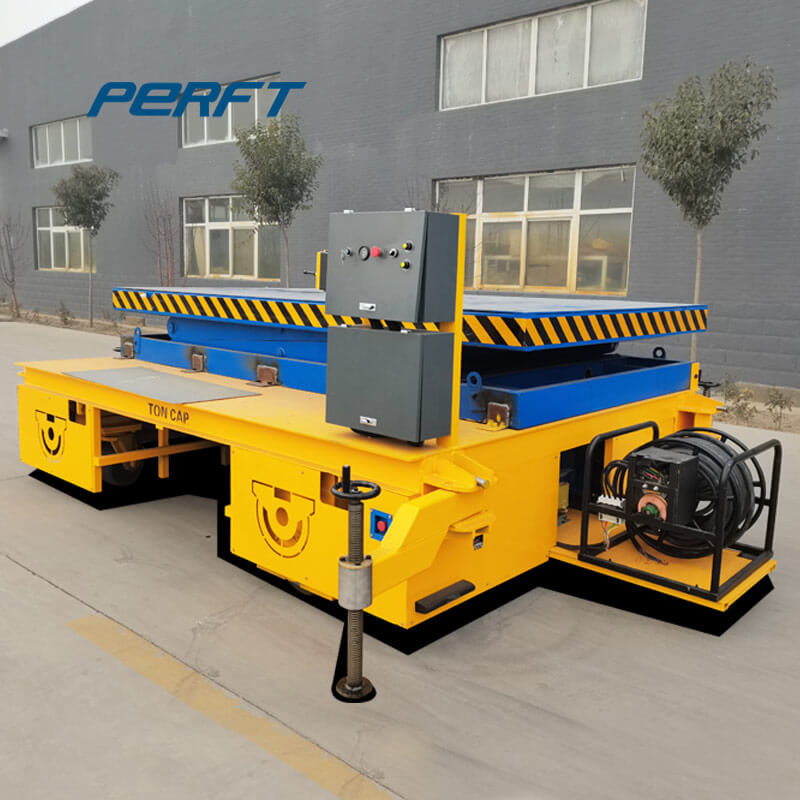

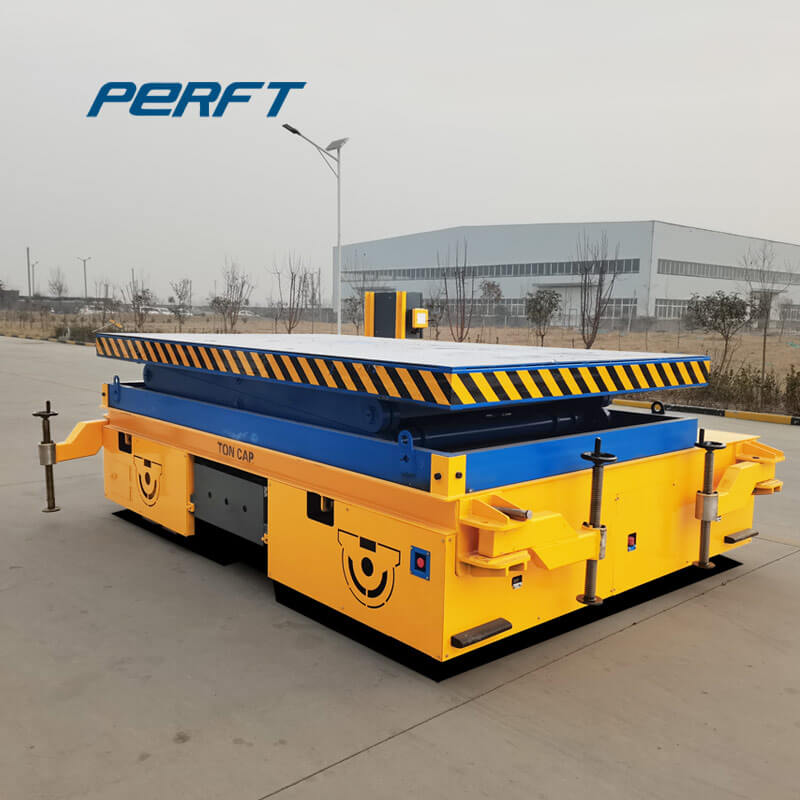

5 Ton Trackless Transfer Carts for Heavy Industry
5 Ton Trackless Transfer Carts for Heavy Industry
5 Ton Trackless Transfer Carts for Heavy Industry
5 Ton Trackless Transfer Carts for Heavy Industry
5 Ton Trackless Transfer Carts for Heavy Industry
5 Ton Trackless Transfer Carts for Heavy Industry
5 Ton Trackless Transfer Carts for Heavy Industry
5 Ton Trackless Transfer Carts for Heavy Industry
5 Ton Trackless Transfer Carts for Heavy Industry
5 Ton Trackless Transfer Carts for Heavy Industry
5 Ton Trackless Transfer Carts for Heavy Industry
5 Ton Trackless Transfer Carts for Heavy Industry

5 Ton Trackless Transfer Carts for Heavy Industry

Trackless transfer carts are composed of the power supply, transmission mechanism, steel structure load-bearing frame, steering system, walking mechanism, control module, and fault diagnosis module...

Trackless transfer carts are composed of the power supply, transmission mechanism, steel structure load-bearing frame, steering system, walking mechanism, control module, and fault diagnosis module.



We offer a wide range of specially designed material transfer carts to meet the unique needs of stamping and forming. These products include mold transport equipment, mold carts, and mold transfer carts, and mold trailer systems. This cart can be run on rail or concrete floors, depending on the shipping route or the customer’s project plan.



Details of trackless transfer carts:

Model BWP-2T BWP-10T BWP-20T BWP-30T
Rated load (T) 2 10 20 30
Table size length(L) 2000 3600 4000 4500
Width(W) 1500 2000 2200 2200
Height(H) 450 500 550 600
Wheel Base (mm) 1200 2600 2800 3200
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400
Ground Clearance (mm) 50 50 50 50
Motor Power (kW) 1 1.6 2.2 3.5
Battery Capacity(Ah) 180 160 180 250
Battery Voltage(V) 24 48 48 48
Running Time When Full Load 4.32 4.8 4 3.5
Running Distance for one Charge(Km) 6.5 7.2 4.8 4.2
Max Wheel Load (KN) 14.4 42.6 77.7 110.4
