Cable drum-powered electric industrial transfer carts for a facility assembly line are electric material transfer carts. The design of the carriage of the cable drum transmission platform is mainly used to handle large cables. The transfer platform cart can be designed according to the size of the large cable to facilitate the customer to transport the cable. The power supply mode of the vehicle is cable power supply. This power supply method is more environmentally friendly and can save usage costs.
Under normal circumstances, the car can be used for a long time without restriction and has the advantages of a large load and long service life. Since the power supply method of the vehicle uses a cable power supply, and the cable is not limited by the use time, the loading and unloading efficiency of the vehicle is high. Whether in terms of price or in terms of service life and cost-effectiveness.

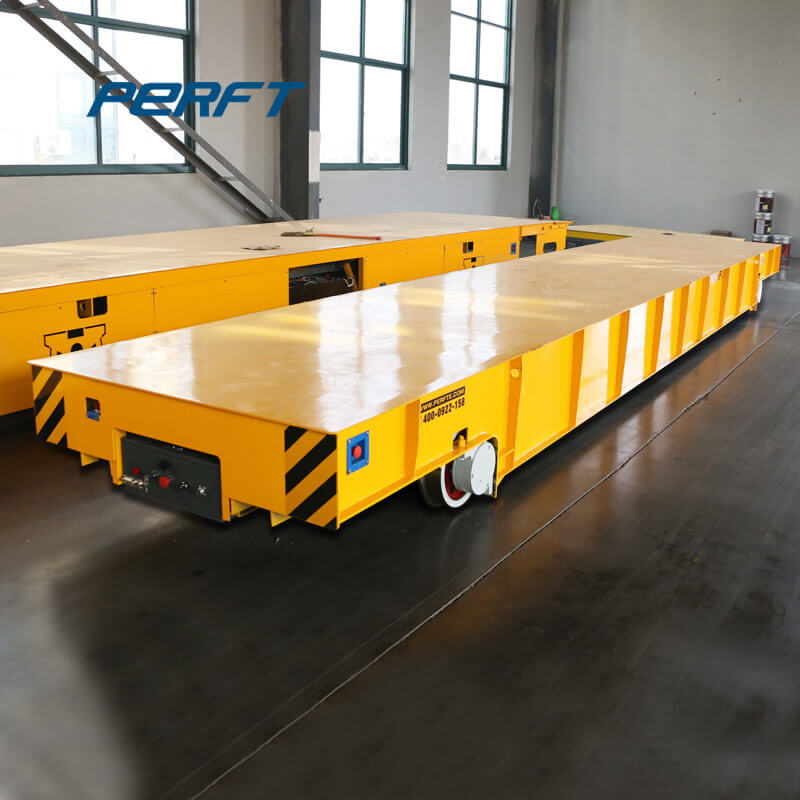

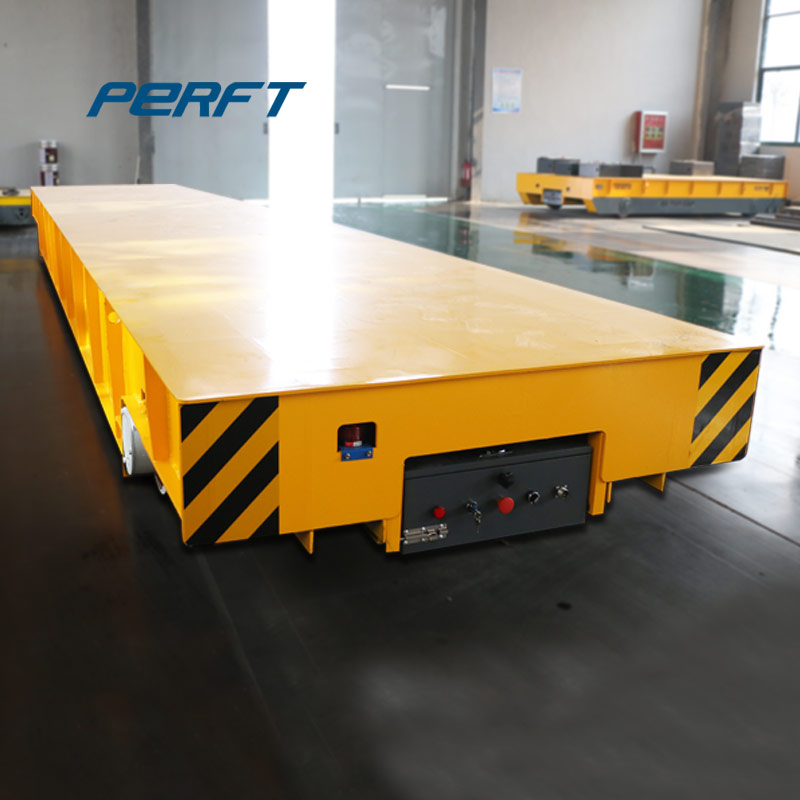

Our line of Rail Flatbed Transfer Carts is designed to accommodate the needs of a wide range of industries such as steel, aluminum, automotive, stamping, heavy manufacturing, and several others. These units are designed to operate on floor-mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane. This type of Electric Industrial Transfer cart is powered by a cable. It can be also powered by a battery and low voltage rails. The powered source depends on the running distance.
Application—-Cable Drum Powered Electric Industrial Transfer Carts
The Cable Drum Powered Electric Industrial Transfer Carts can be applied in the assembly line(ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in the workshop, lathe transport, steel factory(steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry(oil pump, sucker rod, and parts), energy (polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort, etc), railway(rail maintenance, rail welding, train tractor).
Model | BJT-2t | BJT-20t | BJT-50t | BJT-100t | BJT-150t | |
Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
Height(H) | 500 | 600 | 700 | 1000 | 1200 | |
Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
Motor Power(kW) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
Running Distance (m) | 25 | 30 | 50 | 50 | 50 | |
Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
