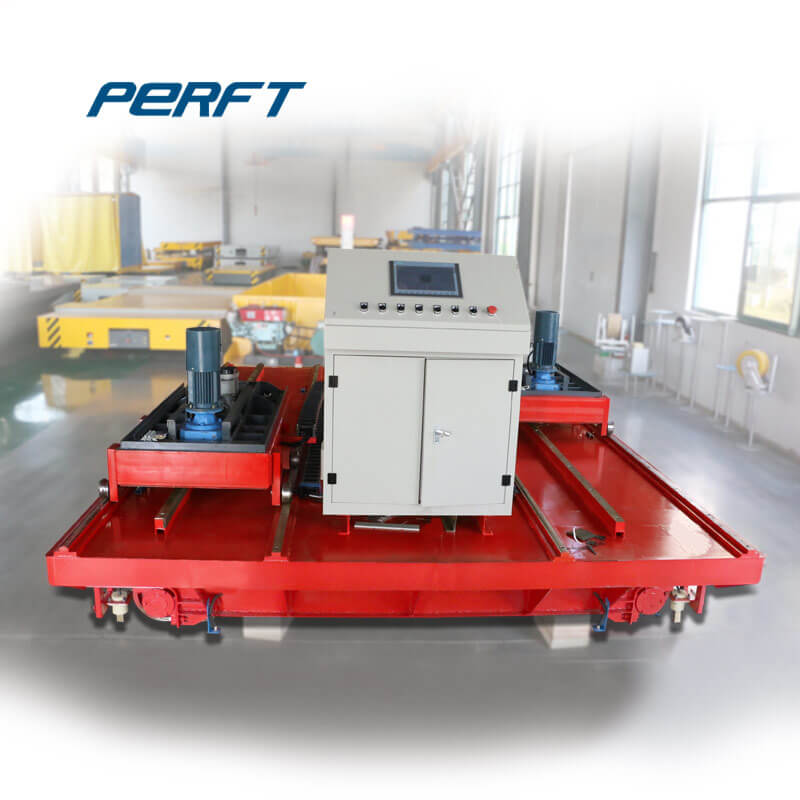

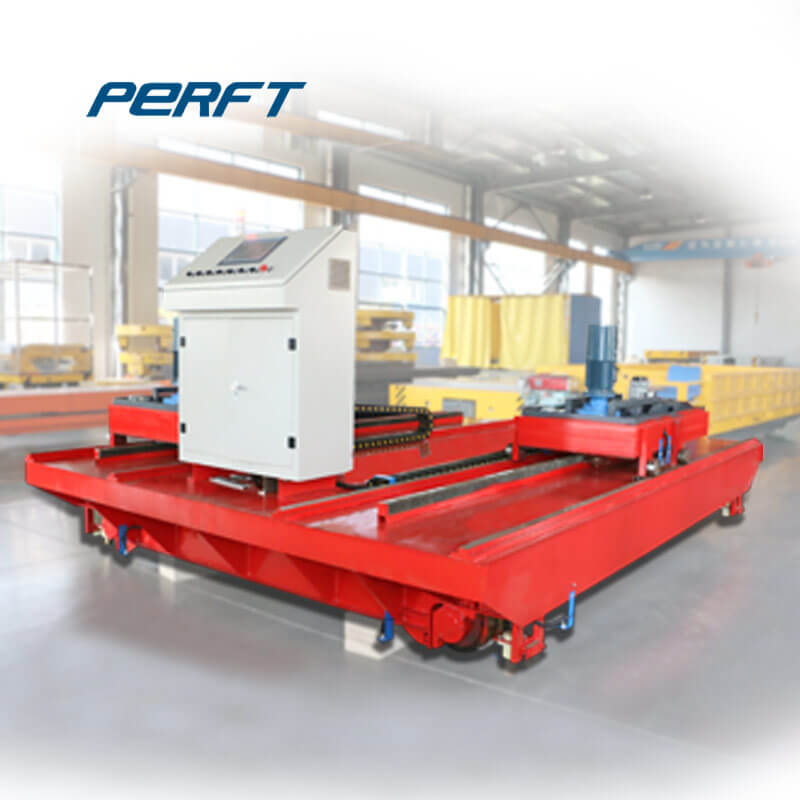

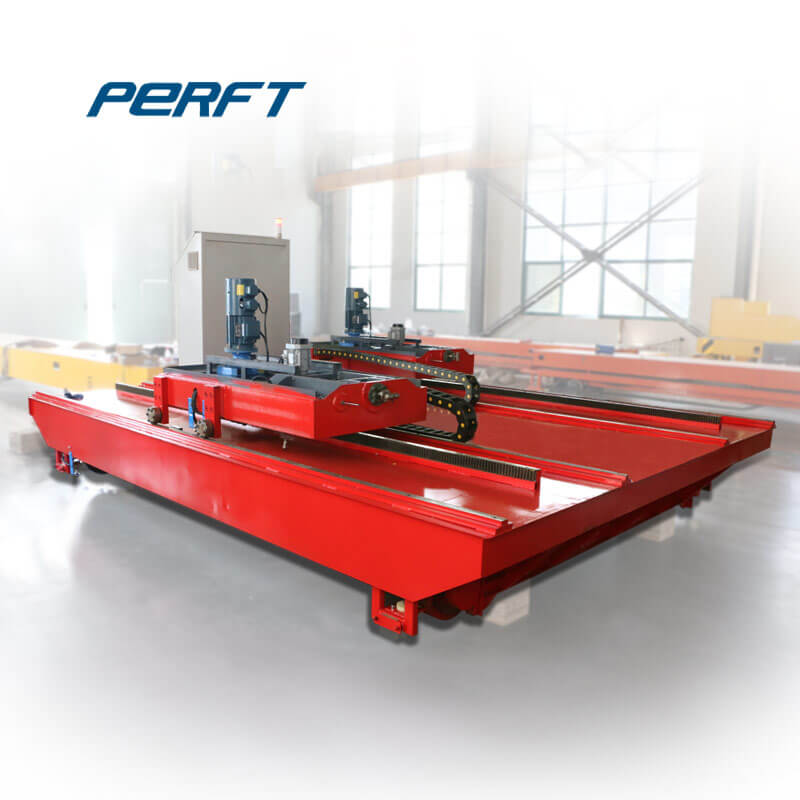

The industry motorized transport vehicle transfer cart rail transfer trolley reduces the AC 380V power to two phases of 36V through a transformer and connects them to two rails. The wheels on the rail flatcar introduce the AC 36V power on the rail into the vehicle electrical box. Rectify the 36V AC to 36V DC, and then control the DC motor through the DC control system to make the transfer cart start, stop, forward, backward, speed adjustment, etc. This series of electric rail powered transfer carts can be used in S-shaped rails, curved tracks, and high-temperature occasions; hydraulic lift systems can be installed on transfer carts; DC motors for flat cars have smooth starting, large starting torque, low impact on the reducer, low voltage, use Long life and other advantages. It has safety and flexibility and has high requirements for track laying (requires insulation treatment of the track). Electric rail-powered transfer carts is suitable for occasions with small load capacity (<50t), high frequency of use, and medium and long-distance transportation. Not limited by distance, but the running distance exceeds 70 meters, the number of transformers needs to be increased to make up for the rail voltage drop.
Description
The rail-powered transfer carts are electric flat transfer carts produced by the Henan Perfect Handling Equipment Co., Ltd. The series car can run on S shape or Arc shape rails. It is safe and flexible, but the rail needs to be insulated in an erection. When the running distance is longer than 70m, the transformer needs to be increased to raise the voltage. The series trolley is suitable for heavy-duty load, high using frequency, and meets full automation demand.
Advantages
Successful case
A company in load in Zhejiang, orders two rail powered trolley which is produced in Henan Perfect Handling Equipment Co., Ltd. in 2018.
Related technical parameters are as follows:
1, load capacity: 120t (safety load factor 150%);
This purchase of rail-powered transfer carts is mainly used in ferroalloy processing workshops. Because of the heavy material, it needs to be transported by electric flat transfer carts. The sliding contact line electric flat transfer carts are transported to the cutting plate machine, cutting into 20cm width, 80cm long, and then cut into about 50*50c with a small shear plate machine. Then conveyed to the electric stove through the conveyor belt.
